KL7LM A 4000lux Explosion proof Miner's Lamp,Coal Cap Lamp

  • KL7LM A 4000lux Explosion proof  Miner's Lamp,Coal Cap Lamp
  • KL7LM A 4000lux Explosion proof  Miner's Lamp,Coal Cap Lamp
  • KL7LM A 4000lux Explosion proof  Miner's Lamp,Coal Cap Lamp
  • KL7LM A 4000lux Explosion proof  Miner's Lamp,Coal Cap Lamp
  • KL7LM A 4000lux Explosion proof  Miner's Lamp,Coal Cap Lamp
  • KL7LM A 4000lux Explosion proof  Miner's Lamp,Coal Cap Lamp
Model No.︰KL7LM A
Brand Name︰Brando TM
Country of Origin︰China
Unit Price︰-
Minimum Order︰200 pc
Share on:

 Total 15 Related Items
Prev7891011Next

Product Description

Introduction:

KL7LM A

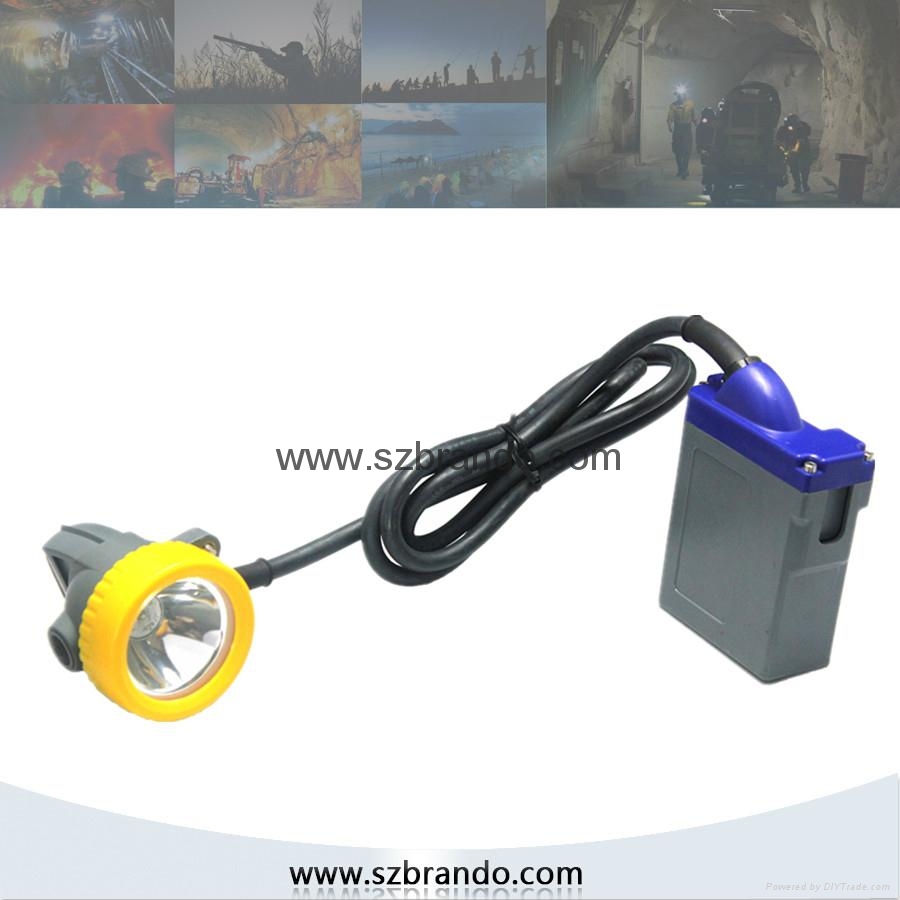

 cord miner cap lamp use 1pcs 3W Cree led as main light,2pcs  SMD leds as the auxiliary lights,and designed with high capacity 5Ah rechargeable Li-ion battery.
This cap lamp  has strong brightness,long lighting time,long life time,high intensity,weight 550g,low usage cost,and high safety .

It uses 1.65M cable (0.75*1.2) to connect headlamp and battery housing ! Blue /yellow Smart headlamp housing with press type switch , The special battery housing can install receiver inside . This function can make your worker more safe, easily to find out people during Mining accidents or normal using underground .

Popular in South Africa over 4years , we also can OEM, ODM special mining lamps according to your details .



Features:

1. CE/ATEX certified.
2. Explosion-proof, water-proof, protection in electrical short
    circuit,automatic power- off on the socket, 100,000 hours led lifetime.
3. Light weight, portable,high quality, strong brightness, long life time.
4. More than 22 hours working time, more than 5000lux high brigtness, more
    than 1000 cycles lifetime of the battery.
5. All our lamps has one year warranty. We will keep free maintenance for
    you in one year.



Specification :

Name   Unit Value
Light  Main LED power W 1W
source illumimous flux Lm ≥220 lum
  lighting degree Lux ≥5000(for 1M)
lifetime Hour ≥100,000
Battery capacity Ah 5
voltage V 3.7
charging time Hour ≤8
lifetime Cycle more than 1000
Charger input voltage V AC110-240
output voltage V DC4.2
output current A 1
Continuous lighting time Hour ≥18
Lighting range M ≥50
Working temperature -60
Max surface temperature 40
Outline dimension MM 77*93*41
Weight (single lamp) G 520
Type of protection CE,ATEX,EXIB II   M1
Protection category

IP68

Usage :

Suitable for explosive gas environment zone 1, zone 2 locations;

Suitable for combustible dust environment 20 zone, 21 zone and 22 zone places;

Suitable for A, II B, II C explosive gas environment;

Suitable for: indoor, outdoor 1.8-3.5 meters in height;



 Industrial Applications:

Widely used in petrochemical, chemical, nuclear power, military automobile shipbuilding industries, suitable for oil pipelines, cable interlayer, platform channel, pump house , Tunnel Project , Mountian-climbing,hiking, Patrolling, Overhauling and Emergency in electrical power company,Mine , Military, Police, Fire Fighting, Dockyard and other hazardous locations ect

Payment Terms︰TT,L/C,Western Union
