Customized KL6LM-C led cordless mining lamp

  • Customized KL6LM-C led cordless mining lamp
  • Customized KL6LM-C led cordless mining lamp
Model No.︰KL6LM-C
Brand Name︰Brando
Country of Origin︰China
Minimum Order︰200 pc
Share on:

 Total 13 Related Items
Prev12345Next

Product Description

High-performance Lithium Battery LED Cordless Mining Cap Lamp





• Target light output minimum 6000 lux measured at 1 meter for a 12-hour shift.

• 4 push buttons – 1 push button to control the light, 1push button to control OLED display and 2 side push buttons to initiate emergency assistance request.



Unique to the cordless model is a back-lit display screen with battery life indication,

providing clear warning when recharge is required.



Feature

* Compact design

* Long life li-ion battery

* Easy push-button operation

* Anti-static durable housing

* Water resistant (IP68)

* Electrical short circuit protection



Specification :

Light source 1pcs main light and 2pcs auxiliary lights
Battery capacity 6.8Ah
Rated Voltage 3.7V
Main light current 300mA
Power of the main light 1W
Illuminous 125LUM
Brightness of the main light  6000lux
Life span for main LED  100000hours
Battery cycles  1200 cycles
Working time  20 hours
3 Levels Light Strong light- auxiliary lights- SOS
Weight   210g
Water-proof grade  IP68





  Correct Use:orrect Use:

The BRANDO cordless cap lamp is a mobile miner’s safety lamp.
The device is attached to a safety helmet, designed to accommodate front mounted attachments, and its power source, battery and housing, is integreted into the cap lamp housing.

The device is primarily designed for underground mining activities and emergency services.



CAUTION:

This product supports life and health in an underground environment.

Inappropriate use, maintenance or tampering may affect the function of the device and
therefore compromise the product’s ability to support life and protect against harm



ATTENTION:

When using the BRANDO Cordless Cap Lamp the following safety instructions must be observed:
•  Device shall be operated by qualified personnel.
•  Before each use, check the functionality of the device.
•  Be aware of the procedures for handling electrostatically sensitive electronics, which include BRANDO cap lamps.
•  This device contains electrostatically sensitive components. Do not open or repair the device without using appropriate electrostatic protection.
•  Be aware of the warranty regulations.
•  Do not charge in hazardous areas.
•  Charge only with approved charging devices.



Waterproof, Fireproof and Drop Resistance Cap Lamp



Charger input power:

USB Charger: 5 VDC @ 2 Amp
Single Charger (optional): 12VDC – 24VDC @ 2 Amp

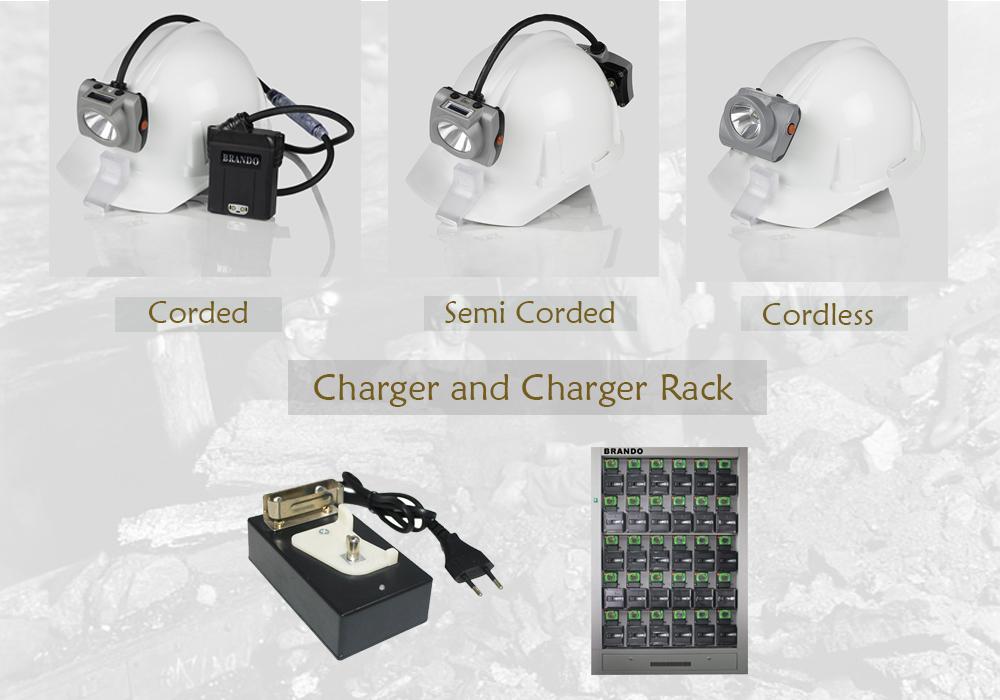

Charger Rack Available



 Application of Brando Miner Lamp

Suitable for explosive gas environment zone 1, zone 2 locations;

Suitable for combustible dust environment 20 zone, 21 zone and 22 zone places;

Suitable for A, II B, II C explosive gas environment;

Suitable for: indoor, outdoor 1.8-3.5 meters in height;



Payment Terms︰TT,L/C,Western Union
