Introduction:

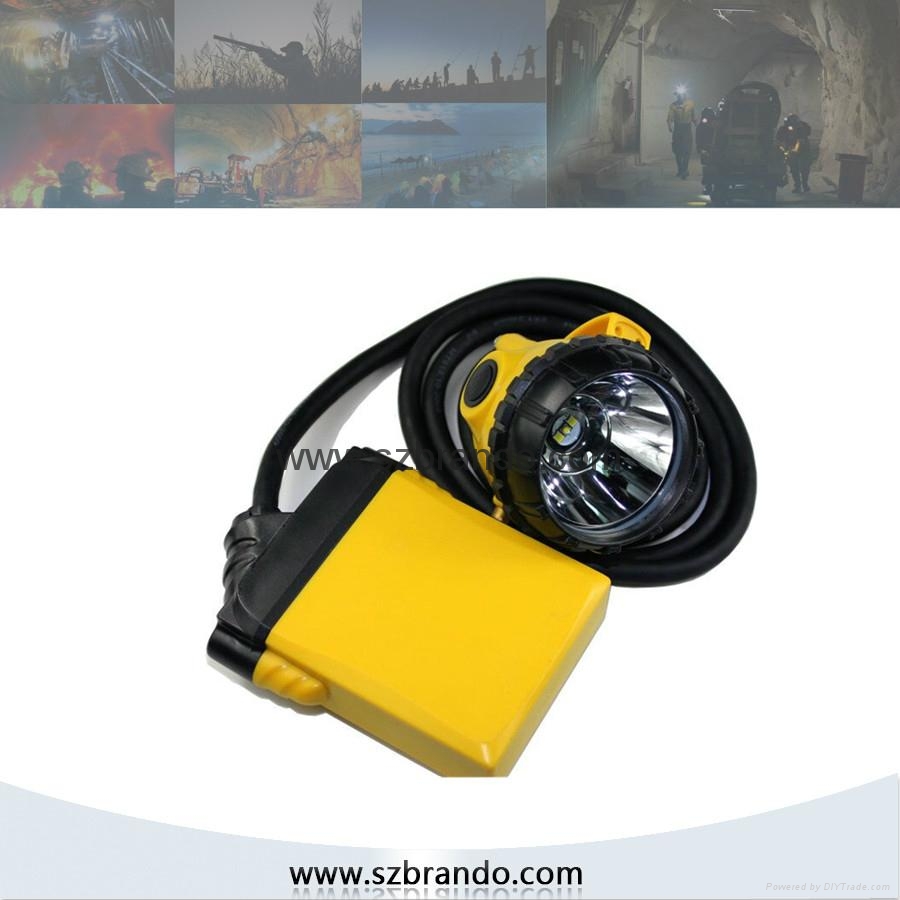

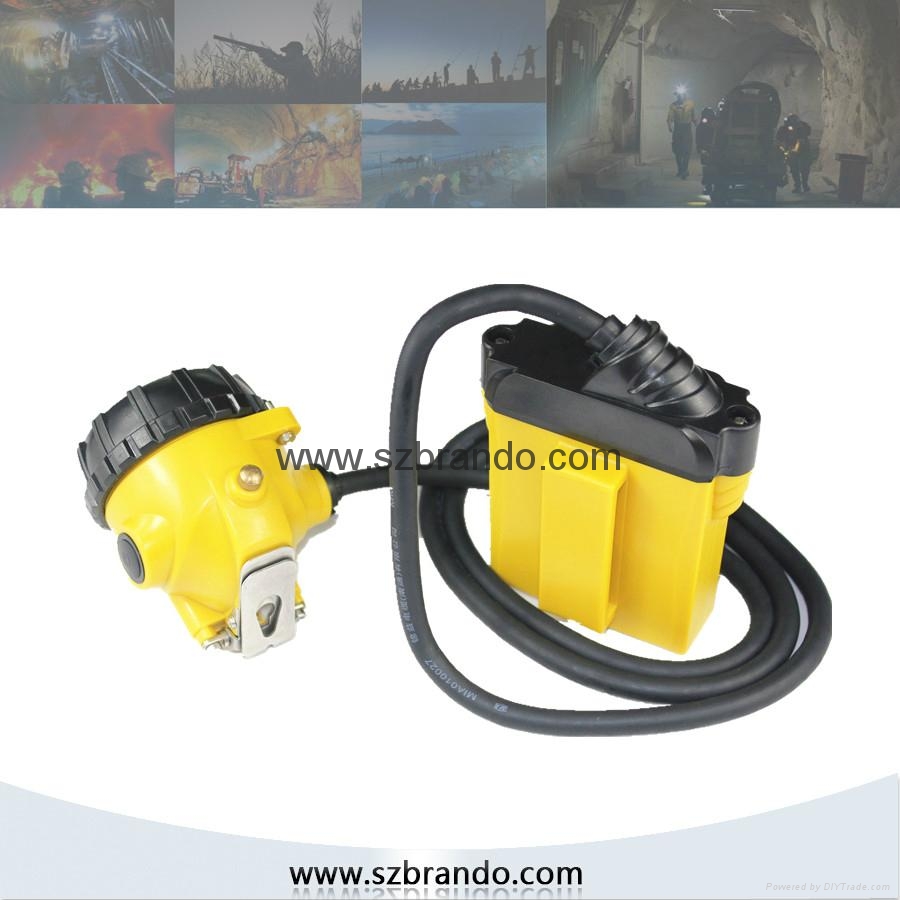

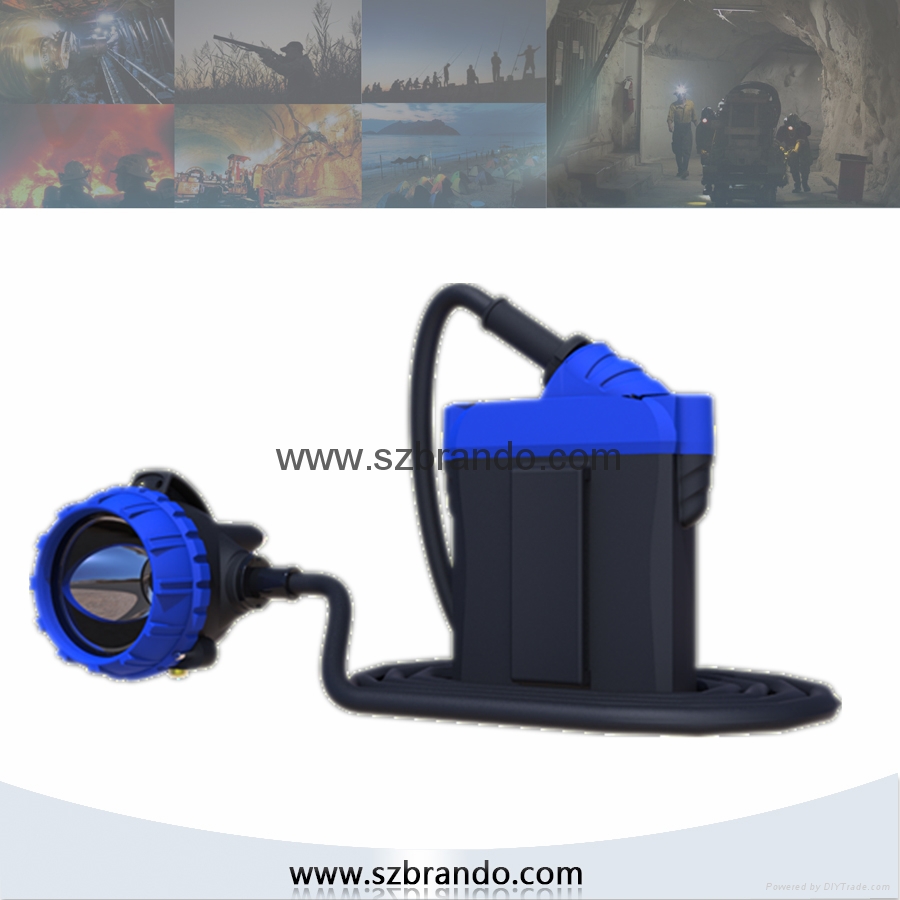

KL12LM New design corded miner cap lamp use 1pcs 3W Cree led as main light,2pcs SMD leds as the auxiliary lights,and designed with high capacity 12Ah rechargeable Li-ion battery. It has three levels power as High-25000lux, Mid-15000lux , Flashlight ! High power last for 16hrs, Mid power last for 24hrs .
|
This cap lamp has strong brightness,long lighting time,long life time,high intensity,weight 600g,low usage cost,and high safety . It uses Special material instead of PC, ABS as tradition lamps .
Features:
1. CE/ATEX certified.
2. Explosion-proof, water-proof, protection in electrical short
circuit,automatic power- off on the socket, 100,000 hours led lifetime.
3. Light weight, portable,high quality, strong brightness, long life time.
4. More than 24 hours working time, more than 25000lux high brigtness, more
than 1000 cycles lifetime of the battery.
5. All our lamps has one year warranty. We will keep free maintenance for
you in one year.
|
Specification :
| Name |
|
Unit |
Value |
| Light |
Main LED power |
W |
3W |
| source |
illumimous flux |
Lm |
≥220 lum |
| |
lighting degree |
Lux |
≥25000(for 1M) |
| lifetime |
Hour |
≥100,000 |
| Battery |
capacity |
Ah |
12 |
| voltage |
V |
3.7 |
| charging time |
Hour |
≤8 |
| lifetime |
Cycle |
more than 1000 |
| Charger |
input voltage |
V |
AC110-240 |
| output voltage |
V |
DC4.2 |
| output current |
A |
1 |
| Continuous lighting time |
Hour |
≥22 |
| Lighting range |
M |
≥50 |
| Working temperature |
℃ |
-60 |
| Max surface temperature |
℃ |
40 |
| Outline dimension |
MM |
77*93*41 |
| Weight (single lamp) |
G |
520 |
| Type of protection |
CE,ATEX,EXIB II M1 |
| Protection category |
IP68
|
Usage :
Suitable for explosive gas environment zone 1, zone 2 locations;
Suitable for combustible dust environment 20 zone, 21 zone and 22 zone places;
Suitable for A, II B, II C explosive gas environment;
Suitable for: indoor, outdoor 1.8-3.5 meters in height;
Industrial Applications:
Widely used in petrochemical, chemical, nuclear power, military automobile shipbuilding industries, suitable for oil pipelines, cable interlayer, platform channel, pump house , Tunnel Project , Mountian-climbing,hiking, Patrolling, Overhauling and Emergency in electrical power company,Mine , Military, Police, Fire Fighting, Dockyard and other hazardous locations ect
